Description

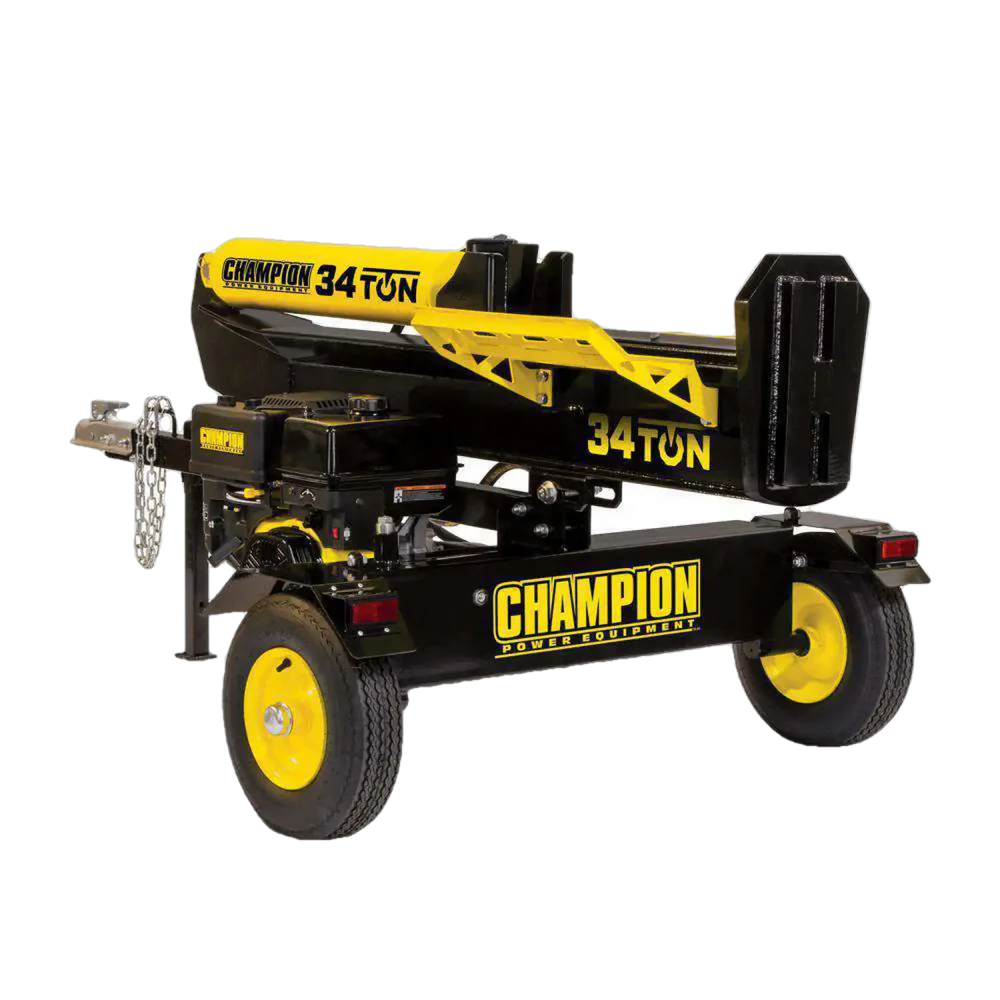

Tackle the most demanding wood-splitting tasks with the commercial-grade power of the Champion Power Equipment 34-Ton Gas Hydraulic Log Splitter. Powered by a heavy-duty 338cc single-cylinder OHV engine with a cast-iron sleeve, this full-beam splitter delivers a massive 34 tons of ram force to easily handle logs up to 24 inches in length and up to 100 lbs. The advanced 2-stage hydraulic pump operates at a maximum pressure of 3,600 PSI with a 13 GPM flow capacity, providing a rapid 16-second cycle time capable of processing over 200 logs per hour. For maximum versatility and ergonomic relief, the unit converts from horizontal to vertical operation in three simple steps. Outfitted with integrated log catchers, an auto-return detent valve, 16-inch DOT-approved transport tires, and a 2-inch ball hitch coupler, this log splitter is fully towable up to 45 mph for easy mobility between jobsites.
Detailed Technical Specifications
| Category | Feature | Specification |
| Power Plant | Engine Type | 338cc 4-Stroke Single-Cylinder OHV |
| Fuel Capacity | 1.6 Gallons (6.2 Liters) | |
| Oil Capacity | 1.2 Quarts (10W-30 Included) | |
| Starting System | Manual Recoil with Low-Oil Shutoff | |
| Hydraulics | Splitting Force | 34 Tons |
| Cycle Time | 16 Seconds | |
| Pump Type | 2-Stage Gear Pump, 13 GPM Max Flow | |
| Max Pressure | 3,600 PSI | |
| Hydraulic System Total | 6.8 Gallons (5.0 Gallon Tank Capacity) | |
| Capacity | Max Log Length | 24 Inches (61 cm) |
| Max Log Weight | 100 lbs (45 kg) | |
| Towing / Mobility | Coupler Ball Size | 2 Inches (5.1 cm) |
| Tires | 16-Inch DOT-Approved (45 mph Max Speed) | |
| Physical | Net Weight | 566.6 lbs (257 kg) |
| Dimensions | 89.5″ L x 51.3″ W x 40.6″ H |
